SCM20PSL Pro & SCM20ASL Pro

SCM20PSL Pro

Overview

  • Compact very high performance passive 2-way studio monitor

  • Ideally suited to:

– critical near-field listening applications in all control rooms
– LCR surround monitoring in small-to-medium control rooms
– surround channels in medium-to-large control rooms

  • Proprietary ATC 150mm/6” Super Linear Mid/Bass Driver

  • Proprietary ATC 25mm/1” Dual Suspension ‘S-Spec’ Tweeter

  • Wide, even dispersion





















Specification

Drivers: LF 6.5”/150mm Super Linear, HF 1”/25mm Dual-Suspension ‘S-Spec’ Tweeter
Amplitude linearity : 80Hz – 20kHz (+/-2dB)
Cut-off frequencies : 55Hz – 25kHz (-6dB freestanding)
Dispersion : +/-80° coherent horizontal, +/-10° coherent vertical
Maximum continuous SPL : 108dB (per pair @ 1m)
Crossover frequency : 2.5kHz
Recommended Amplifier Power: 75 to 300 Watts
Nominal Impedance : 8 Ohm

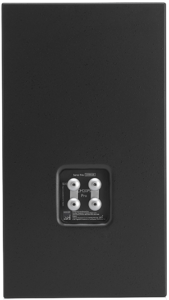

Connectors : 2 x Pairs Binding Posts/4mm Plugs – Bi-Wireable
Cabinet Dimensions (HxWxD) : 450x250x294mm (17.7″x9.8″x11.6″)
Weight : 18kg/39.7lbs (per cabinet)



Partnering Electronics

P1 Pro

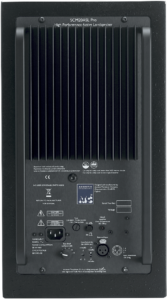

SCM20ASL Pro

Overview

  • Compact very high performance 2-way studio monitor ideally suited to:

    – critical near-field listening applications in all control rooms

    – LCR surround monitoring in small-to-medium control rooms

    – surround channels in medium-to-large control rooms

  • Proprietary ATC 150mm/6” Super Linear Mid/Bass Driver

  • Proprietary ATC 25mm/1” S-Spec Tweeter

  • Discrete MOSFET class A/B bi-amp pack with 200W/50W

    continuous power output





Specification

Drive unit – Low Frequency (LF): 6.5”/150mm Super Linear with 75mm/3″ voice coil (SB75-150SL 8 Ohm)
Drive unit – High Frequency (HF): 1”/25mm dual suspension Soft Dome (SH25-76S 6 Ohm)
Amplitude Linearity (±2dB): 80Hz-20kHz
Cut-off Frequencies (-6dB, free-standing): 55Hz, 25kHz
Horizontal Dispersion: ±80°, Coherent
Vertical Dispersion: ±10°, Coherent
Max. Continuous SPL (1 metre): 108dB
Crossover Frequency: 2.1kHz
Audio Input: Rear panel mounted female xlr (pin 2 +)
Input Sensitivity: 1V
Input Sensitivity Trim: -12dB (1V – 4V)
Input Impedance: Balanced > 10kΩ
Amplifier Output: Bass 200W, High 50W
Filters: 2nd Order Critically Damped
Overload Protection: Active FET momentary gain reduction
Front Panel Indicators: Power On indicator, Gain Reduction warning
Dimensions (HxWxD): 450 x 250 x 392mm (17.72˝ x 9.84˝ x 15.43˝)
Weight: 23.4kg / 51.6lbs
