SSM25i Pro
Introducing the new high-performance studio surface monitors
SSM25i Pro
The SSM series of passive loudspeakers is engineered to provide accurate, consistent monitoring when mounted on control room walls or ceilings. Featuring shallow cabinets and a versatile mounting bracket solution, these loudspeakers offer flexible installation options. They are an ideal choice for multichannel and immersive audio setups – including Dolby Atmos systems – in control rooms where space is at a premium, but reference-level performance is essential.
SSM25i Pro
HIGH-PERFORMANCE STUDIO SURFACE MONITORS

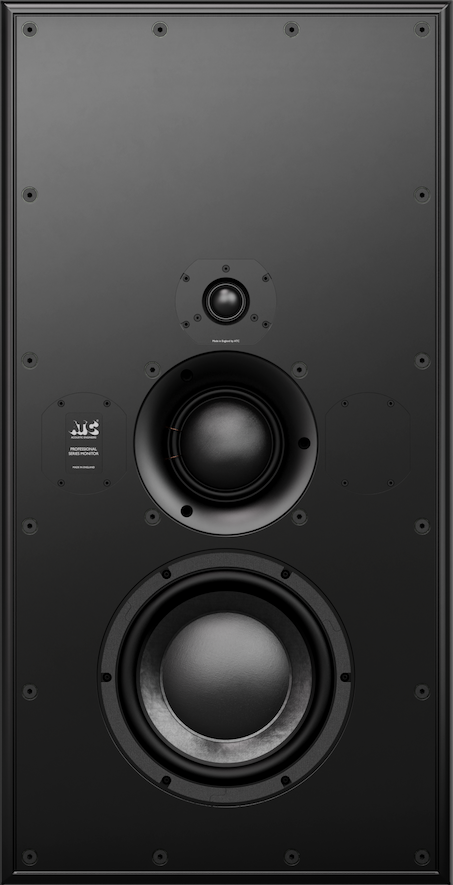

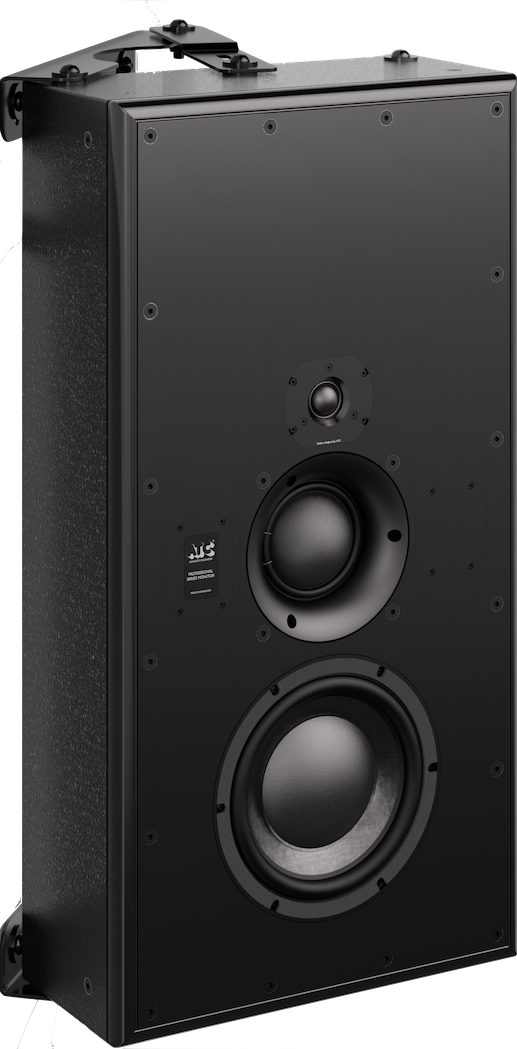

The SSM25i Pro is a mid-sized, high-performance passive 3-way loudspeaker that delivers exceptional audio quality through a combination of advanced engineering and premium components. It is designed for larger control rooms and/or systems requiring increased dynamic range & bandwidth. The speaker can be wall or ceiling mounted in vertical or horizontal orientations. In addition, the mounting hardware allows the cabinet to pivot away from the wall/ceiling surface, directing more of the output towards the listening position resulting in a superior balance and precise imaging.
KEY FEATURES
WALL OR CEILING MOUNT.
SHALLOW CABINET – JUST 198MM / 7 13/16” DEEP (MOUNTED FLAT).
ARTICULATING MOUNTING HARDWARE ALLOWS SPEAKER TOE/ANGLE TO BE OPTIMISED FOR THE LISTENING POSITION.
ATC SB50-164SC BASS DRIVER.
SEALED CABINET DESIGN DELIVERS CONSISTENT LOW FREQUENCY PERFORMANCE WHEN SURFACE MOUNTED.
ATC SM75-150 MID-DRIVER.
ATC SH25-76S DUAL SUSPENSION TWEETER.
STEEL REINFORCED CABINET WITH SAFETY TETHER FOR RELIABLE INSTALLATION. *
6-YEAR WARRANTY.
* INSTALLATION MUST BE COMPLETED BY A QUALIFIED PROFESSIONAL.
SPECIFICATIONS
ACOUSTIC SPECIFICATIONS
Drive Units – Bass: 1 x SB50-164SC 8Ω
– Mid: SM75-150 16Ω
– HF: 1 x SH25-76S 6Ω
Low Frequency Cut-off: (-6dB, half-space): 40Hz
High Frequency Cut-off:
Crossover Frequency: 380Hz & 3.5kHz
Recommended Power Amplifier: 75W to 300W
Input Connectors: Binding Posts/4mm Plugs, single pair.
MaxSPL: 109dB continuous, 115dB peak, (per pair, IEC weighted Pink Noise,1m half-space)
Sensitivity: 85dB/W @1m
Nominal Impedance: 8Ω
Minimum Impedance: 5Ω
