SCM25A Pro Mk2
Introducing the
SCM25A Pro Mk2
Compact Active 3-Way Studio Monitor

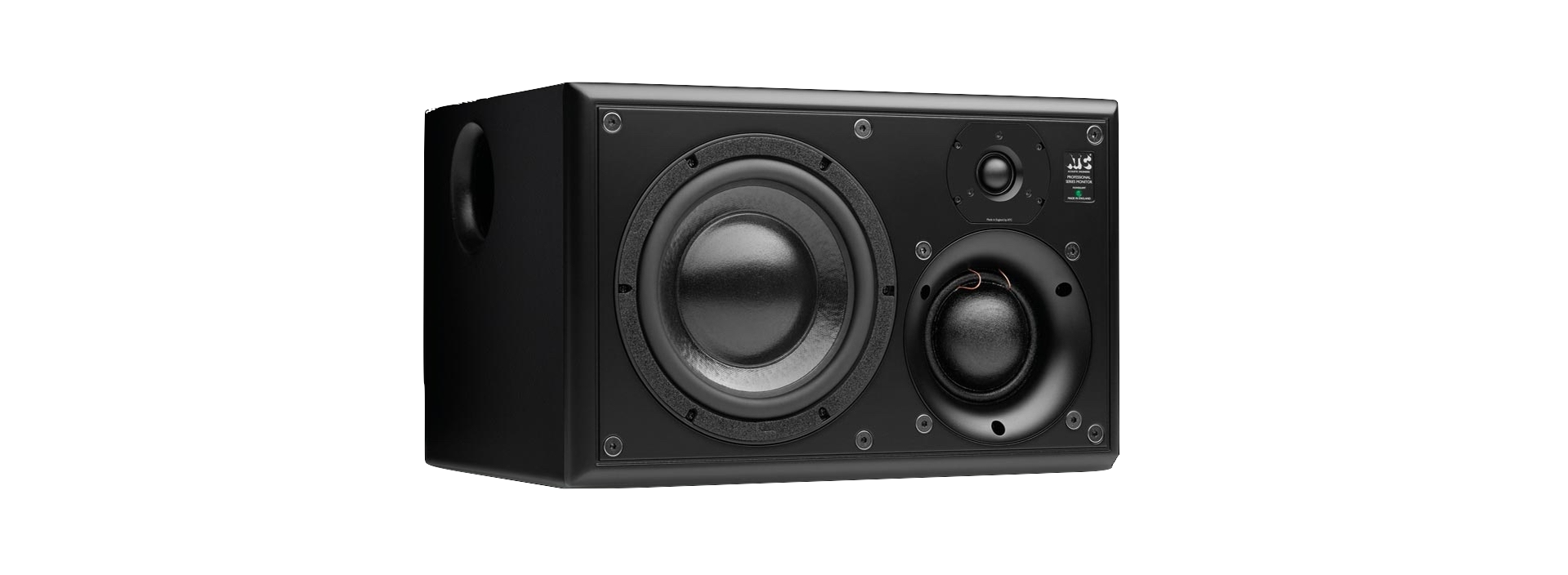

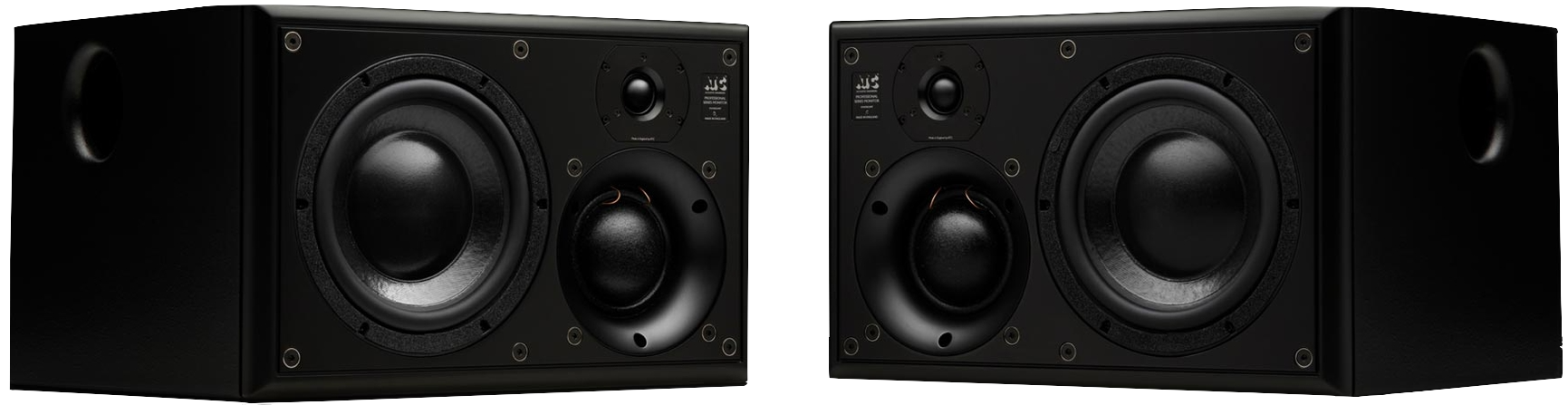

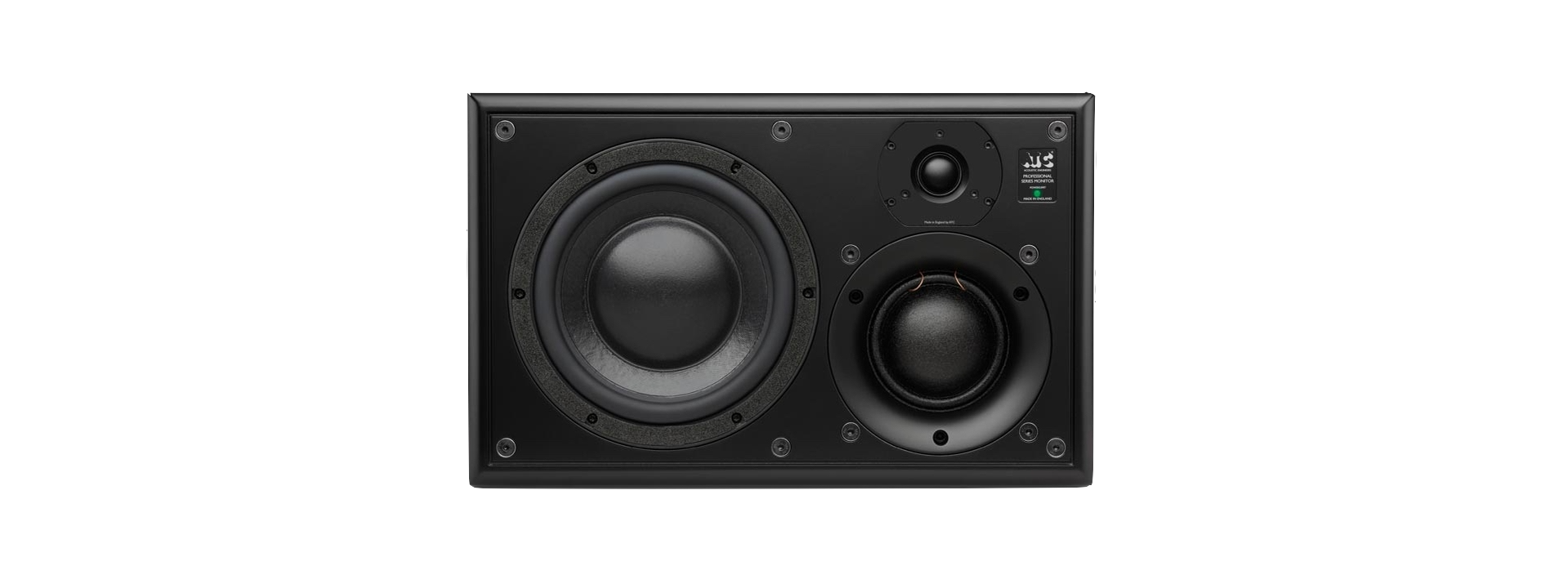

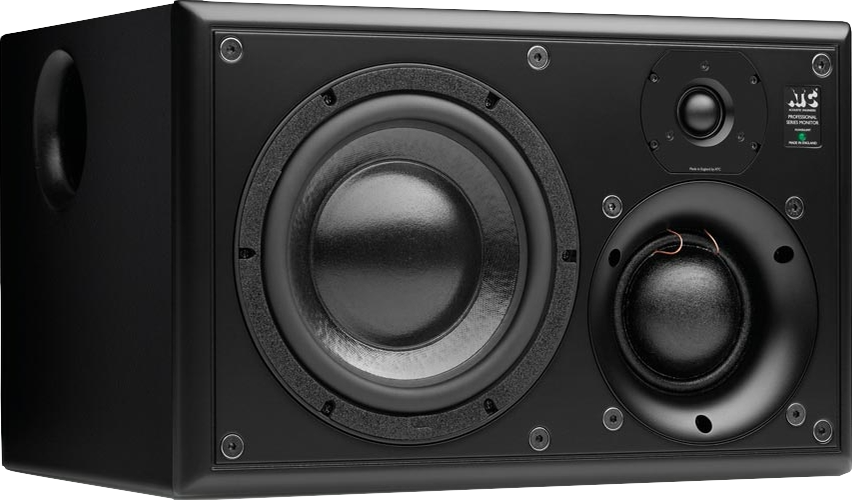

The SCM25A Pro Mk2 is a compact 3-way high-performance active studio monitor loudspeaker, based around a 6.5”/164mm bass driver. The monitors combination of exceptional mid-range clarity, high output, extended bass response and modest size makes it ideal for nearfield monitoring in a wide range of critical applications.
The latest Mk2 version is updated with ATC’s latest SH25-76S ‘Dual Suspension’ tweeter, extending the high-frequency response along with a reduction in distortion. These improvements ensure faster decision making and outstanding translation outside the studio.
SCM25A Pro Mk2
Key Features
3-WAY DESIGN FEATURING ATC SM75-150 SOFT DOME MID-RANGE DRIVER
WIDE DISPERSION VS FREQUENCY FOR EXCELLENT STEREO IMAGING OVER A LARGE LISTENING AREA
ATC DISCRETE MOSFET CLASS A/B AMP-PACK DELIVERS HIGH DYNAMIC RANGE IN COMBINATION WITH VERY LOW DISTORTION AND AN EXTENDED HF BANDWIDTH
4TH ORDER ACTIVE CROSSOVERS WITH ALL-PASS PHASE COMPENSATION ENSURE OUTSTANDING DRIVER INTEGRATION
INPUT SENSITIVITY AND BASS ‘LIFT’ USER CONTROLS
HAND-BUILT IN ENGLAND AND COVERED BY A 6-YEAR WARRANTY
SPECIFICATIONS
ACOUSTIC/LOUDSPEAKER SPECIFICATIONS – SCM25A PRO MK2

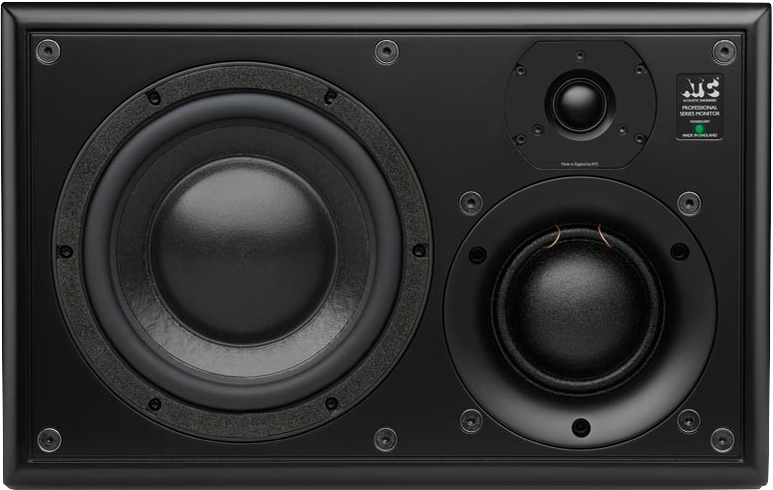

Drive Units:
Bass: 1 x SB50-164SC 8Ω
Mid: 1 x SM75-150 16Ω
HF: 1 x SH25-76S 6ΩCompact
Low Frequency Cut-off: 47Hz (-6dB, anechoic).
High Frequency Cut-off: 25kHz (-6dB).
MaxSPL: 109dB continuous, 115dB peak (per pair, IEC Weighted Pink Noise, 1m, anechoic).
Sensitivity: 85dBC ref. -15dBu (per single unit, 1m, pink noise, bass boost 0dB, sensitivity 2.2dBu/1V).
ELECTRONIC SPECIFICATIONS – SCM25A PRO MK2

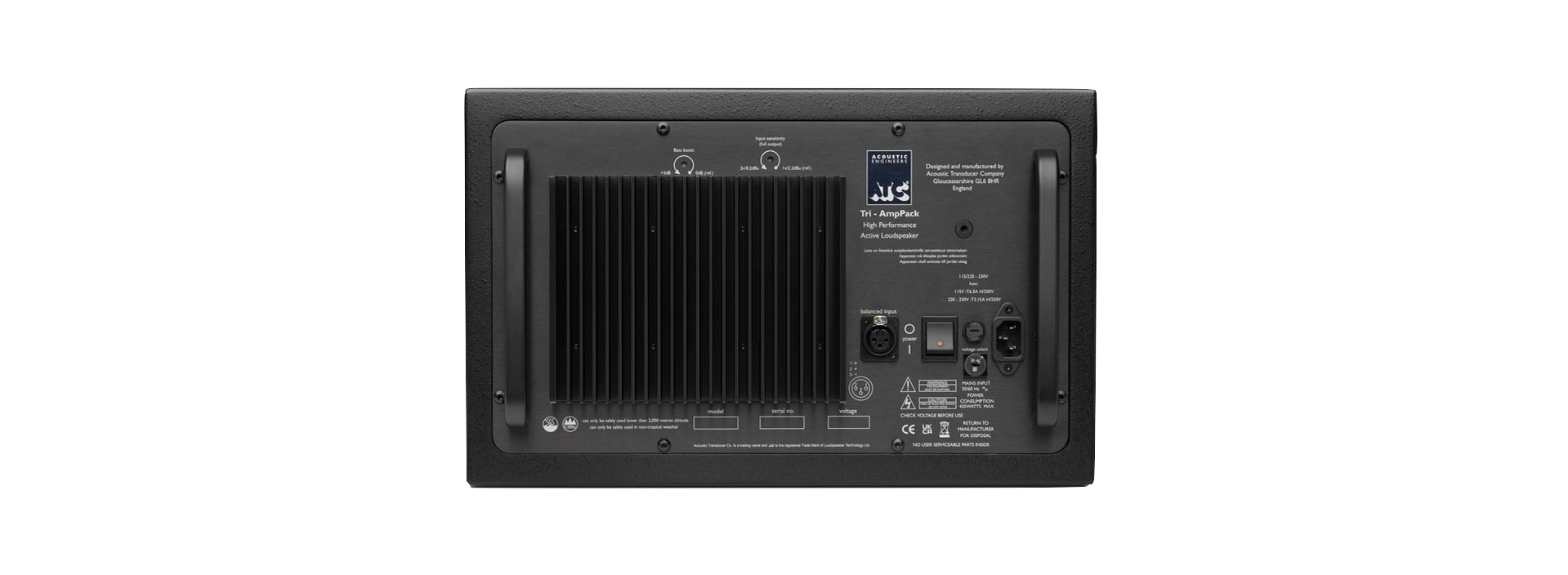

Balanced Input: 1 x Rear Panel Mounted Female XLR, pin 2 hot.
Input Impedance: 20kΩ (differential).
Input CMRR: 82dB at (10kHz).
Input Sensitivity: 2.2dBu/1Vrms for full power.
Input Sensitivity Control: Continuously Variable from 2.2dBu – 8.2dBu/1Vrms – 2Vrms (-6dB).
Bass Boost Control: Continuously variable from 0dB to +3dB.
Crossover Filters: 4th Order Linkwitz Riley at 380Hz and 3.5kHz.
Frequency Response: <2Hz to >200kHz (-3dB).
Amplifier type: Grounded Source MOSFET based Class A/B, convection cooled.
Output Power: Bass 150W into (8Ω), Mid 60W into (8Ω), HF 32W into (6Ω).
THD+N: <0.003%/-92dB (1kHz, 1dB below rated power, 90kHz BW).
Limiter: ATC Active FET Momentary Gain Reduction, active limiter indicated via front panel LED.
Mains Input: 220-230V or 115V – Factory set. Please observe panel markings and labels!
Power Consumption: Idle 24W/35VA. 1/8th Power 117W/159VA. Full Power 255W/324VA.
Heat Output: Idle 82BTU/hr. 1/8th power 335 BTU/hr. Full Power 358BTU/hr.
PHYSICAL SPECIFICATIONS – SCM25A PRO MK2
Net Net Weight: 25.4kg/55.9lbs.
Product Dimensions: 271 x 430 x 411mm / 10 11/16th” x 16 15/16th” x 16 3/16th” (H x W x D) (allow a further 25mm / 1 inch at rear for cable clearance).
SCM25ATH Pro Mk2
Top Hat Mount Studio Monitor
The SCM25ATH Pro Mk2 is a wall bracket mount variant of the SCM25A Pro Mk2. Its performance matches that of the nearfield version but its cabinet features a ‘top-hat’ in its base for mating with the Konig & Meyer 24120 bracket*
The SCM25Ai Pro Mk2 is well suited to surround channel use in multi-channel surround and immersive audio applications, such as Dolby Atmos.
Key Features
3-WAY DESIGN FEATURING ATC SM75-150 SOFT DOME MID-RANGE DRIVER
WALL MOUNTABLE USING K&M 24120 BRACKET*
WIDE DISPERSION VS FREQUENCY FOR EXCELLENT STEREO IMAGING OVER A LARGE LISTENING AREA
ATC DISCRETE MOSFET CLASS A/B AMP-PACK DELIVERS HIGH DYNAMIC RANGE IN COMBINATION WITH VERY LOW DISTORTION AND AN EXTENDED HF BANDWIDTH
4TH ORDER ACTIVE CROSSOVERS WITH ALL-PASS PHASE COMPENSATION ENSURE OUTSTANDING DRIVER INTEGRATION
INPUT SENSITIVITY AND BASS ‘BOOST’ USER CONTROLS
HAND-BUILT IN ENGLAND AND COVERED BY A 6-YEAR WARRANTY
SPECIFICATIONS
ACOUSTIC/LOUDSPEAKER SPECIFICATIONS – SCM25ATH PRO MK2
Drive Units:
Bass: 1 x SB50-164SC 8Ω
Mid: 1 x SM75-150 16Ω
HF: 1 x SH25-76S 6ΩCompact.
Low Frequency Cut-off: 47Hz (-6dB, anechoic).
High Frequency Cut-off: 25kHz (-6dB).
MaxSPL: 109dB continuous, 115dB peak (per pair, IEC Weighted Pink Noise, 1m, anechoic).
Sensitivity: 85dBC ref. -15dBu (per single unit, 1m, pink noise, bass boost 0dB, sensitivity 2.2dBu/1V).
ELECTRONIC SPECIFICATIONS – SCM25ATH PRO MK2
Balanced Input: 1 x Rear Panel Mounted Female XLR, pin 2 hot.
Input Impedance: 20kΩ (differential).
Input CMRR: 82dB at (10kHz).
Input Sensitivity: 2.2dBu/1Vrms for full power.
Input Sensitivity Control: Continuously Variable from 2.2dBu – 8.2dBu/1Vrms – 2Vrms (-6dB).
Bass Boost Control: Continuously variable from 0dB to +3dB.
Crossover Filters: 4th Order Linkwitz Riley at 380Hz and 3.5kHz.
Frequency Response: <2Hz to >200kHz (-3dB).
Amplifier type: Grounded Source MOSFET based Class A/B, convection cooled.
Output Power: Bass 150W into (8Ω), Mid 60W into (8Ω), HF 32W into (6Ω).
THD+N: <0.003%/-92dB (1kHz, 1dB below rated power, 90kHz BW).
Limiter: ATC Active FET Momentary Gain Reduction, active limiter indicated via front panel LED.
Mains Input: 220-230V or 115V – Factory set. Please observe panel markings and labels!
Power Consumption: Idle 24W/35VA. 1/8th Power 117W/159VA. Full Power 255W/324VA.
Heat Output: Idle 82BTU/hr. 1/8th power 335 BTU/hr. Full Power 358BTU/hr.
PHYSICAL SPECIFICATIONS – SCM25ATH PRO MK2
Net Net Weight: 25.4kg/55.9lbs.
Product Dimensions: 271 x 430 x 411mm / 10 11/16th” x 16 15/16th” x 16 3/16th” (H x W x D) (allow a further 25mm / 1 inch at rear for cable clearance).
Mounted Range of Adjustment:
Left/right pan: +/- 48° continuously variable (limited by cabinet fouling wall)
Vertical tilt: Horizontal to -22° (down) in 11 increments (limited by bracket).
SCM25Ai Pro Mk2
Install Studio Monitor
The SCM25Ai Pro Mk2 is an install specific variant of the SCM25A Pro Mk2, designed to be wall/ ceiling mounted. Its performance matches that of the nearfield version but it features a steel reinforced cabinet and rear panel fixing points for safe and simple mounting using a range of widely available third-party brackets.
It is powered by a remote 19” rack mounted version of the SCM25A Pro Mk2 amplifier with 1, 2 and 3-channel remote amp options available (see below).
The SCM25Ai Pro Mk2 is ideally suited to surround and ceiling channel use in multi-channel surround and immersive audio applications, such as Dolby Atmos.
R1-234 AMPLIFIER
1-channel 6U/19”
rack mount amplifier
to partner
SCM25Ai Pro loudspeakers,
suitable for wall or rack mounting.
R2-234 AMPLIFIER
2-channel 5U/19”
rack mount amplifier
to partner
SCM25Ai Pro loudspeakers,
suitable for rack mounting.
R3-234 AMPLIFIER
3-channel 5U/19”
rack mount amplifier
to partner
SCM25Ai Pro loudspeakers,
suitable for rack mounting.
Key Features

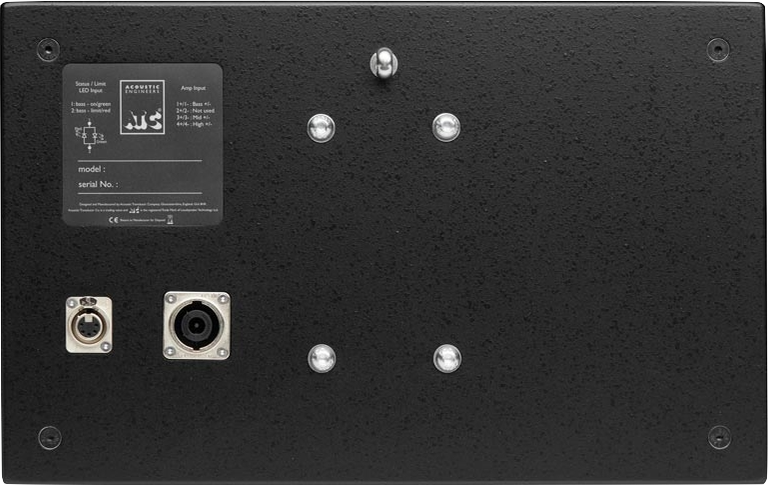

INSTALL SPECIFIC CABINET WITH STEEL REINFORCEMENT, 4 X M8 REAR PANEL MOUNTING POINTS AND SAFETY TETHER POINT
SUITABLE FOR WALL OR CEILING MOUNTING USING SUITABLE THIRD-PARTY BRACKETS*
ACOUSTIC PERFORMANCE MATCHES THE SCM25A PRO MK2 NEARFIELD
POWERED BY REMOTE 19” RACK MOUNT AMPLIFIER WITH 1-CHANNEL, 2-CHANNEL AND 3-CHANNEL OPTIONS AVAILABLE**
AMP-TO-SPEAKER CONNECTION VIA NL8 SPEAKER AND 5-PIN XLR POWER/LIMIT LED CABLE***
HAND-BUILT IN ENGLAND AND COVERED BY A 6-YEAR WARRANTY
*THIRD-PARTY BRACKETS SOLD SEPARATELY
**REMOTE AMPS SOLD SEPARATELY
***CABLES SOLD SEPARATELY AND PRICED ACCORDING TO LENGTH
