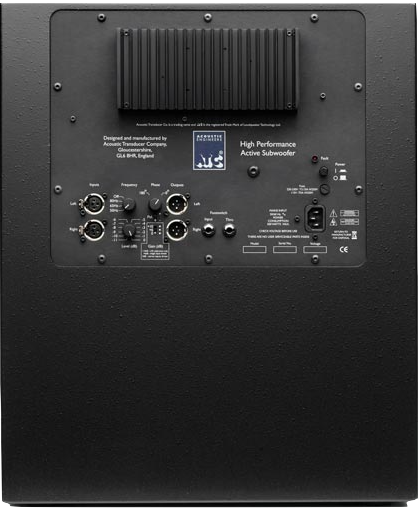

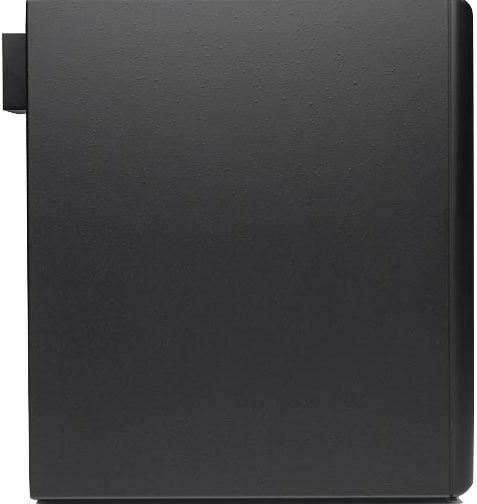

SCS70 PRO FREE STANDING ACTIVE SUBWOOFER

SCS70iW IN-WALL ACTIVE SUBWOOFER







KEY FEATURES

ATC HAND-BUILT HIGH-EXCURSION 12”/300MM SS75-314SC SUBWOOFER DRIVER

EXCEPTIONAL BALANCE OF HIGH SPL CAPABILITY, LOW CUT-OFF AND LOW DISTORTION

ATC DISCRETE MOSFET CLASS AB POWER AMPLIFIER

STEREO BALANCED INPUTS & STEREO ‘LINK’ BALANCED OUTPUTS

LEVEL, LOW-PASS FREQUENCY & PHASE USER CONTROLS

REMOTE MUTING VIA FOOTSWITCH^*

HAND-BUILT IN ENGLAND AND COVERED BY A 6 YEAR WARRANTY

^*FOOTSWITCH SUPPLIED SEPARATELY, LATCHING TYPE, ¹/₄”/6.35MM JACK CONNECTION



SPECIFICATIONS

ACOUSTIC SPECIFICATIONS

Drive Unit – Bass: 1 x SS75-314SC 8Ω

Low Frequency Cut-of f: 22Hz (-6dB, half space, low pass filter @ 80Hz)

Low Pass Filters: 50Hz, 65Hz, 80Hz, 320Hz. (-6dB, 4th order Linkwitz Riley)

MaxSPL: 110dB continuous, 116dB peak (IEC Weighted Pink Noise, @ 1m, half space, low pass filter @ 80Hz)

Sensitivity: 85dBC ref. -11dBu (single input driven, @ 1m, Gain +6dB, Level 0dB, pink noise, low pass filter @ 80Hz)



ELECTRONIC SPECIFICATIONS

Amplifier type: Grounded Source MOSFET based Class A-B, convection cooled



Output Power: 300W into 8Ω

THD+N: <0.003%/-90dB, at 100Hz, 300W into 8Ω over 90kHz bandwidth

Balanced Inputs: 2 x Rear Panel Mounted Female XLR, pin 2 hot

Balanced Outputs: 2 x Rear Panel Mounted Male XLR, pin 2 hot

Frequency Response: <2Hz (-3dB) – 320Hz (-6dB, set by panel -controlled LP filter)

Gain Control: 0 , +6dB, +10dB

Level Control: 0dB -11dB in 1dB steps. Total range 21dB with use of Gain switch

Phase Control: 0 -180° ref. Input

Polarity Control: In-phase/Out-of-phase ref. Input

Power Consumption: Idle 8W/14VA. 1/8th Power 170W/230VA. Full Power 500W/600VA

Additional: Mute via ¹/₄”/ 6 .35mm Jack socket , controlled via latching footswitch (supplied separately)



PHYSICAL SPECIFICATIONS

Net Weight: 41.6kg / 91.7lbs

Dimensions: (H x W x D): 568 x 464 x 500mm / 22 5/16 x 18 ¹/₄ x 19 11/16 inches (heatsink protrudes a fur ther 40mm / 1 ⁹/₁₆ inches from rear).





SCS70iW Pro

12”/300MM IN-WALL ACTIVE SUBWOOFER

The ATC SCS70iW Pro is a 12”/300mm active subwoofer, designed to be mounted flush in-wall (soffit mount). It is the ideal partner to in-wall mounted mid-size ATC monitors in stereo, multichannel, and immersive audio applications.



IN-WALL AMPLIFIER OPTIONS



R1-300 AMPLIFIER

1-channel 7U/19” rack mount amplifier to partner SCS70iW Pro subwoofer, suitable for wall or rack mounting.







KEY FEATURES

IN-WALL (FLUSH MOUNT) CABINET DESIGN WITH REDUCED DEPTH AND REMOTE MOUNTED AMPLIFIER.

ATC HAND-BUILT HIGH-EXCURSION 12”/300MM SS75-314SC SUBWOOFER DRIVER.

R1-300 7U/19” REMOTE RACK MOUNT AMPLIFIER.

AMP – SUB CONNECTION VIA NL4 SPEAKER & 5-PIN XLR LED CABLE^*

STEREO BALANCED INPUTS & STEREO ‘LINK’ BALANCED OUTPUTS.

LEVEL, LOW-PASS FREQUENCY & PHASE USER CONTROLS.

REMOTE MUTING VIA FOOTSWITCH^**.

HAND-BUILT IN ENGLAND AND COVERED BY A 6 YEAR WARRANTY.

^*CABLES SUPPLIED SEPARATELY PRICES ACCORDING TO LENGTH.

^**FOOTSWITCH SUPPLIED SEPARATELY, LATCHING TYPE, ¹/₄”/6.35MM JACK CONNECTION.



SPECIFICATIONS

The acoustic and electronic specifications are identical to the SCS70 Pro model.



PHYSICAL SPECIFICATIONS – SUBWOOFER

Net Weight: 32.5kg / 71.5lbs

Product Dimensions: (H x W x D): 568 x 464 x 450mm / 22 ⁵/₁₆ x 18 ¹/₄ x 17 ¹¹/₁₆ inches (allow a further 25mm / 1 inch at rear for cable clearance).



PHYSICAL SPECIFICATIONS – AMP

Net Weight: 12kg / 26.4lbs

Product Dimensions: (H x W): 7U x 19” (rack mount). Depth 133mm / 5 ¹/₄ inches. Allow a further 90mm/3 ¹/₂ inches at rear for cable clearance.
