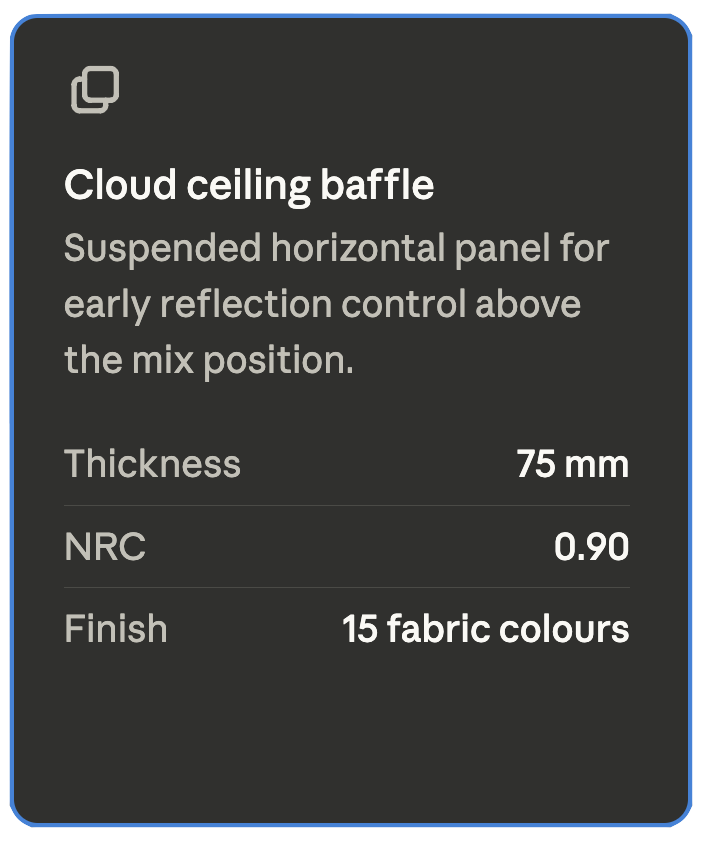

CLOUD CEILING BAFFLE



HTA-CLB-75

PHYSICAL SPECIFICATION

Core material

Thickness

Facing (top)

Facing (underside)

Frame

Standard sizes

Custom sizes

Weight

Fire rating

Suspension

Max drop from slab

Fabric colours

Mineral wool, 60 kg/m³

75 mm

(top) Rigid fibreglass veil

Acoustically transparent fabric

Powder-coated steel perimeter, 25 × 25 mm

1200 × 2400 mm / 1200 × 1800 mm

Yes — radius corners available

≈ 4.5 kg/m²

Class A

4-point wire cable system, adjustable height

1500 mm (extension cables available)

15 standard, RAL custom on request



ACOUSTIC PERFORMANCE — NRC BY OCTAVE BAND

250 Hz ■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■ 0.65

500 Hz ■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■ 0.88

1 kHz ■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■ 0.95

2 kHz+ ■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■ 0.90



RATED PERFORMANCE

Rated NRC

Test standard

0.90

ASTM C423 / ISO 354



Installation note: Centre the cloud between the mix position and the monitor plane. Minimum recommended area is 1.4× the

console/desk footprint. Suspend at ear height +300 mm or as low as structurally permissible.
