UMD192

The most powerful MADI & Dante digital audio interface available

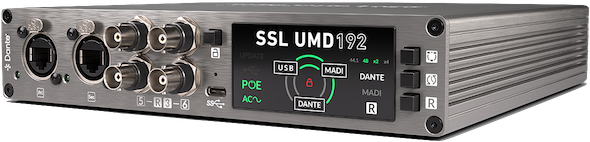

Solid State Logic is proud to introduce the UMD192, a powerful and portable USB audio interface designed to meet the demands of broadcast, professional live sound, and high-spec studio environments. With seamless integration across MADI, Dante, and USB, the UMD192 offers flexible routing, high channel counts, and uncompromising performance for recording, playback, and format bridging. Providing 192 channels at both 96 and 48 kHz, or 128 channels at 192 kHz in a compact and portable ½RU form factor.

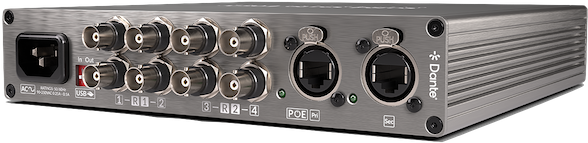

UMD192REARANGLE541108bdb9ae0f8d3ad4010344e734de
previous arrow
next arrow





The Perfect Bridge Between USB, MADI and Dante

Built for versatility, the UMD192 supports bidirectional audio
between any two formats – MADI, Dante or USB – with the
third format able to receive a split feed. This makes it ideal for bridging multiple MADI-connected devices into a Dante network, or for high-channel-count recording and playback via USB 3.0.

On the network side, UMD192 delivers fully interoperable Dante AoIP with AES67 and ST 2110 (with DDM) support and ultra-low Dante latency down to 0.25 ms. UMD192 provides flexible clocking options from either MADI or Dante, covering sample rates from 44.1 to 192 kHz. With six MADI BNC pairs, the UMD192 can also be configured in redundant mode, enabling three dual-redundant MADI connections for mission-critical broadcast and live workflows.



Key Features

  • 192 channels at 48/44.1 kHz, 192 channels at 96/88.2 kHz, and 128 channels at 192/176.4 kHz

  • USB 3.0 class-compliant interface

  • Mac OS compatible; Windows support via SSL driver

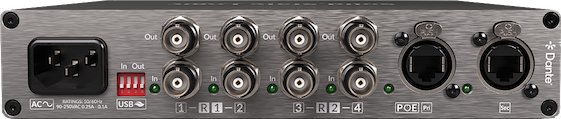

  • 6x MADI BNC pairs with redundant mode for 3x dual-redundant MADI connections

  • Fully interoperable Dante AoIP with AES67 and ST 2110 (with DDM) support

  • Ultra-low Dante latency—as low as 0.25ms

  • Flexible clocking from MADI or Dante

  • Ruggedised Ethernet ports (2x Primary, 2x Secondary) with Link & Activity LEDs

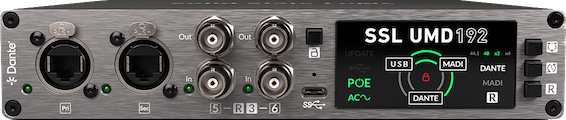

  • Clear front-panel indicators for signal flow, sample rate matching, power status, and connectivity

  • Intuitive front-panel controls, with a lockout feature to prevent accidental changes during operation.

  • Multiple power options: AC, PoE, or USB—with redundancy support

  • Lightweight and portable design for desktop, console-side, or rack-mounted use

  • Included cables: USB-C to C, USB-A to C adapter, IEC power cable





Tech Specs



System Requirements and Specs

Mac OS 12 and above | Class-Compliant, Plug-and-play,
Windows 11. Install included ASIO/WDM driver.



Connectivity

USB 3.0 Type C Connector (Box includes Type C to C and Type C to A).



Clocking

Can either be clocked from the Dante/AoIP network or clocking from the incoming MADI stream on port 1. When MADI ports are in redundant mode MADI clock will come from the active MADI input on the redundant pair.



Sample rate chart
